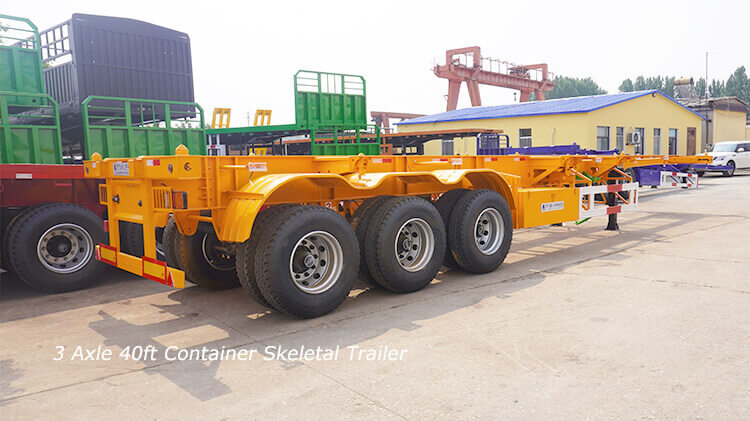

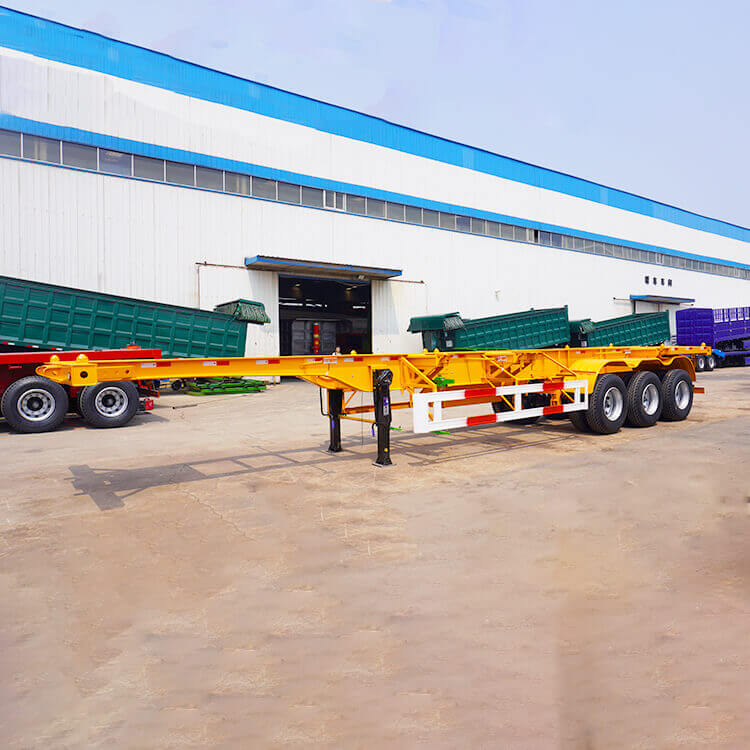

The main structure of this 3 axle 40ft 60ton skeleton trailer with air suspension is made of high-strength steel, which can withstand the transportation needs of most containers and goods.

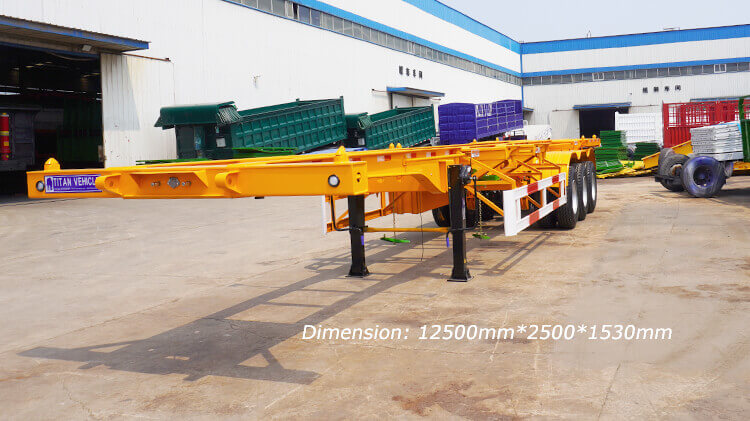

The size of this 3 axle 40ft skeleton trailer with air suspension is 12500mm*2500mm*1530mm. It can transport one 40ft or two 20ft containers at one time, which has high transportation efficiency and reduces transportation time and cost.
The entire frame of skeleton trailer for sale is assembled and welded on a special positioning platform. It has a reasonable structure, high rigidity, good stability and safety, and can ensure the safe and stable transportation of goods.
The components of skeleton trailer from TITAN are all selected from high-quality well-known brands, which have a long service life and low maintenance costs, and can maintain good operating conditions for a long time.
The 3 axle skeleton trailer is equipped with 12 container twist locks, which can be used for fixing containers of various sizes, and it is easy to operate and fast in loading, unloading and transportation.
The container twist lock of the skeleton trailer in Benin is designed to be concealable and has flexible adaptability. The twist lock can be hidden when transporting other goods without being affected.

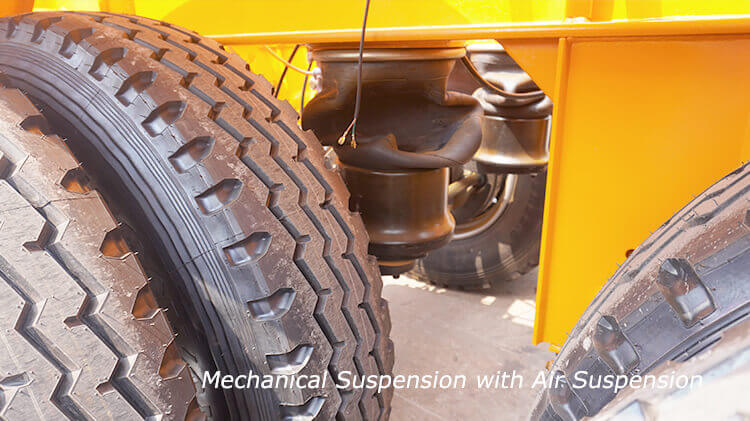

40ft skeleton trailer for sale uses high-quality suspension system and tires with strong grip, and the chassis structure is stable to ensure the stable transportation of containers and goods.
Model: 3 Axle 40ft 60ton Skeleton Trailer for Sale in Mali
Dimension(mm): 12500*2500*1530mm(depends on final design)
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW etc.

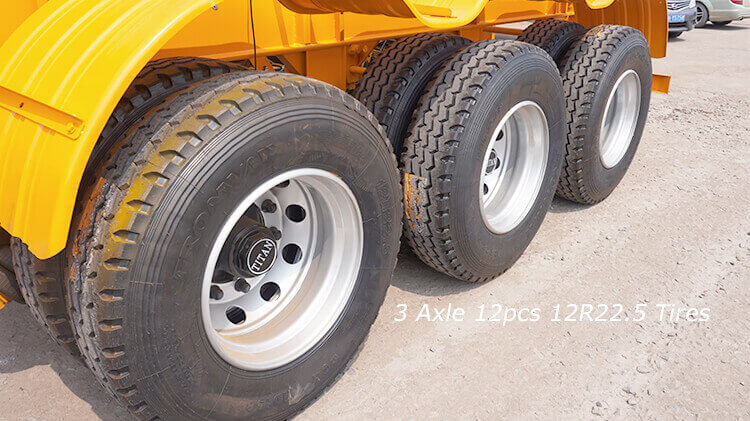

Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12
King Pin: 2.0 or 3.5 inch JOST

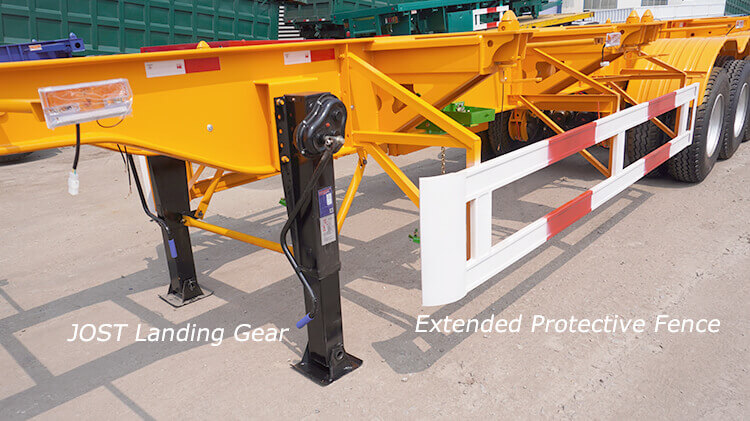

Landing Gear: Chinese standard 28ton or JOST brand
Brake System: WABCO
If you are interested in this 3 axle 40ft 60ton skeleton trailer, welcome to leave your message!
We will provide more details, quotations, catalogs, drawings, and videos for you!
