The 3 axle low bed semi trailer is designed with a low center of gravity and a broad, open floor space, making ideal for carrying large, irregularly shaped equipment. The structure supports a wide range of applications across multiple industries, such as agriculture, construction, and other fields requiring the movement of oversized machinery.
TITAN low bed semi trailer reflect a commitment to quality and performance across multiple dimensions. The low bed trucks are engineered not only for long-term durability and stability in demanding work environments but also for enhancing transportation safety and operational efficiency.
With continued design refinements and structural upgrades, lowbed truck provide a reliable and cost-effective transport solution that addresses diverse operational requirements and meets the evolving needs of Mali customers.

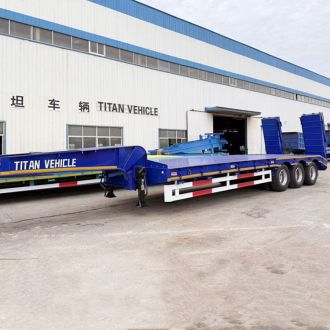

3 Axle Low Bed Semi Trailer Truck for Sale in Mali
3 Axle Low Bed Semi Trailer Truck for Sale in Mali
Leave a message now to get the best price and a free spare tire!

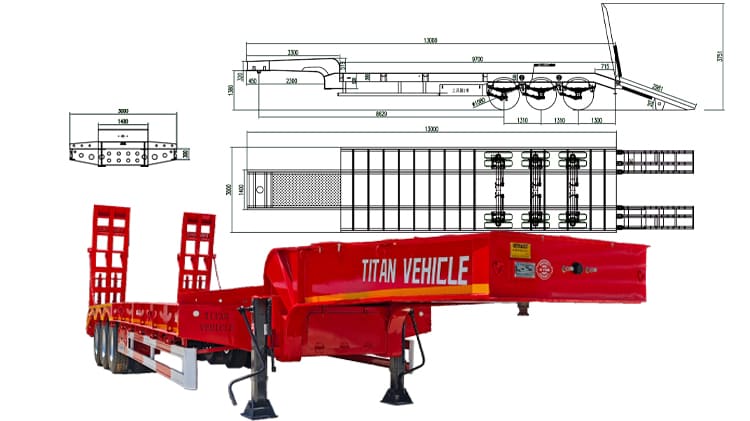

Overall Dimension: 13000mm*3000mm*1710mm
Side Beam: 300mm high, 8mm thick

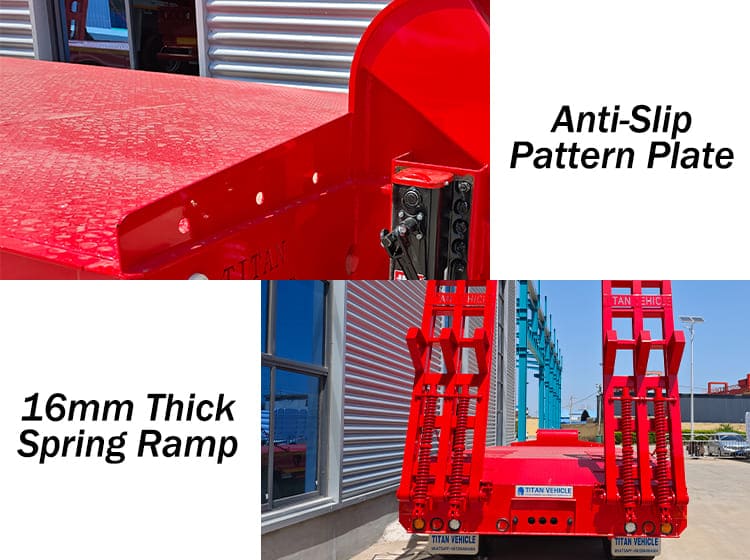

Floor Plate: 5mm thickened pattern plate
Axles: 3 axles, 13ton, TITAN brand
Tire: 12 units, 12R22.5
Suspension: mechanical suspension
Leaf Spring: 10 layers
Ramp: 16mm thick spring ramp

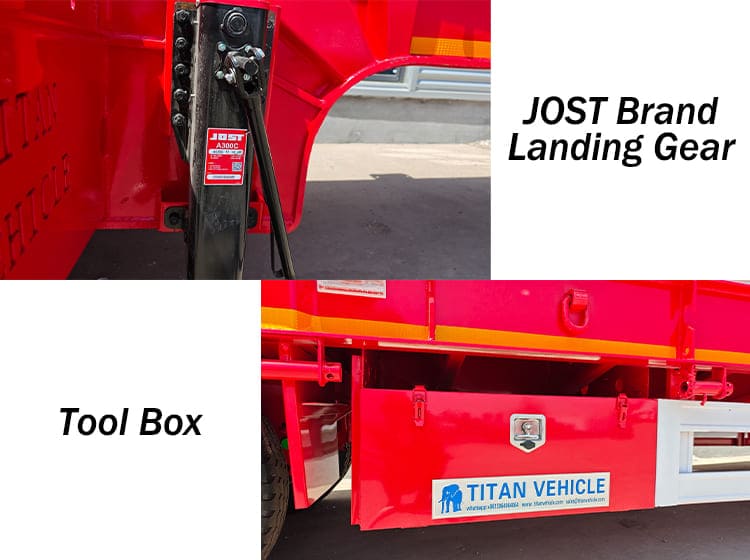

Landing Gear: JOST brand, 28 ton
Lamp: LED Lamp

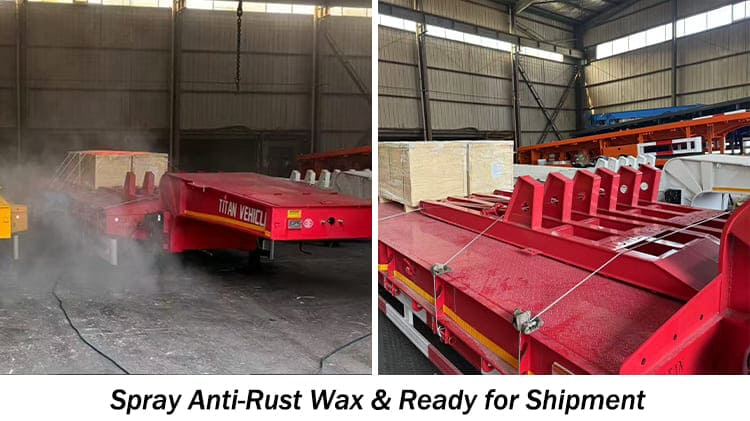

When comes to shipping, TITAN uses a unique and protective packaging approach that distinguishes low bed truck from others in the market. Before shipping, each 3 axle low bed semi trailer is sprayed with a layer of protective wax and then wrapped with a waterproof raincoat. The two-layer defense effectively shields the low bed semi trailer from potential corrosion or damage caused by sea air, salt spray, or harsh marine weather.
The low bed trucks are flexible in delivery options and can be shipped either in containers or by RORO vessels, depending on customer requirements and logistical needs.
Leave a message now to get the best price and a free spare tire!
The entire 3 axle low bed semi trailer surface benefits from a powder spray and baking paint finish, a coating process that, although more expensive to produce, significantly improves both appearance and resilience. The finishing method allows the lowbed truck to retain the color and glossy appearance over time.
For customers in Mali, the enhanced corrosion resistance offered by the technique ensures that the low bed semi trailer maintains the condition without frequent repainting. The finish can last up to approximately five years, thereby minimizing ongoing maintenance costs and increasing overall value.
At the core of the lowbed truck structure lies the main beam, which is built using Q460 high-strength steel. The material has excellent resistance to deformation and is particularly well-suited for high-load transportation tasks.
Additionally, the gooseneck section is strengthened using a double-layer reinforcement design, which helps reduce the likelihood of structural damage under extreme weight or stress. The dual-reinforcement structure contributes to improved pressure resistance and long-lasting performance during heavy-duty operations.

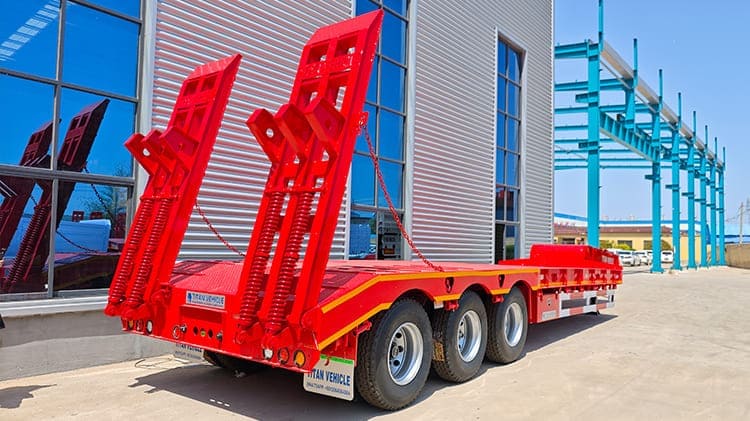

For heavy equipment loading and unloading, TITAN has refined the design of the rear loading ramp. A frequent concern among users is whether the ramp can withstand the substantial weight of machinery. To address, 3 axle low bed semi trailer is fitted with a 16mm thick spring ramp.
The thicker, spring-supported ramp delivers reliable performance and adequate strength to ensure that large equipment can safely ascend and descend. The ramp simple design enables easy and efficient operation, just one person is needed to raise or lower, streamlining daily use.
The low bed semi trailer braking system is another critical safety feature which uses 16-ton brake pads, which significantly enhance braking efficiency. The high-capacity brake pads allow for faster response times and help avoid tire lock-up during sudden stops, protecting both the tires and the cargo. The system is particularly beneficial on complex or rough roads, where can reduce the stopping distance by more than 5 meters.
The low bed truck is also fitted with high-pressure rubber brake air lines, which are more durable than standard alternatives. With a lifespan of about 10 years, the components reduce the frequency of replacements, making the lowbed truck more dependable for long-term operation.

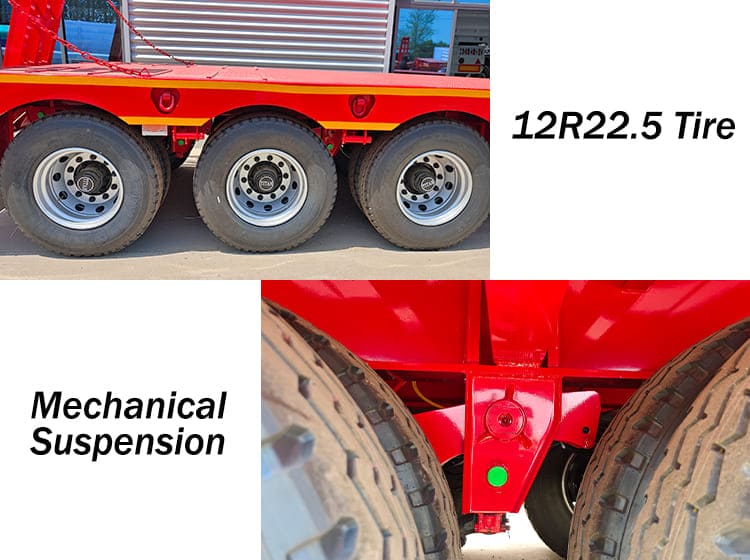

In terms of tire, the low bed semi trailer comes with 12R22.5 tires, known for the solid load-bearing capabilities. The tires can also be customized based on specific road conditions or customer preferences.
Before production, TITAN conducts thorough market research to tailor the 3 axle low bed semi trailer setup to regional environments. The approach helps the low bed truck maintain excellent handling, safety, and longevity on a variety of terrains, whether smooth highways or uneven rural paths.
