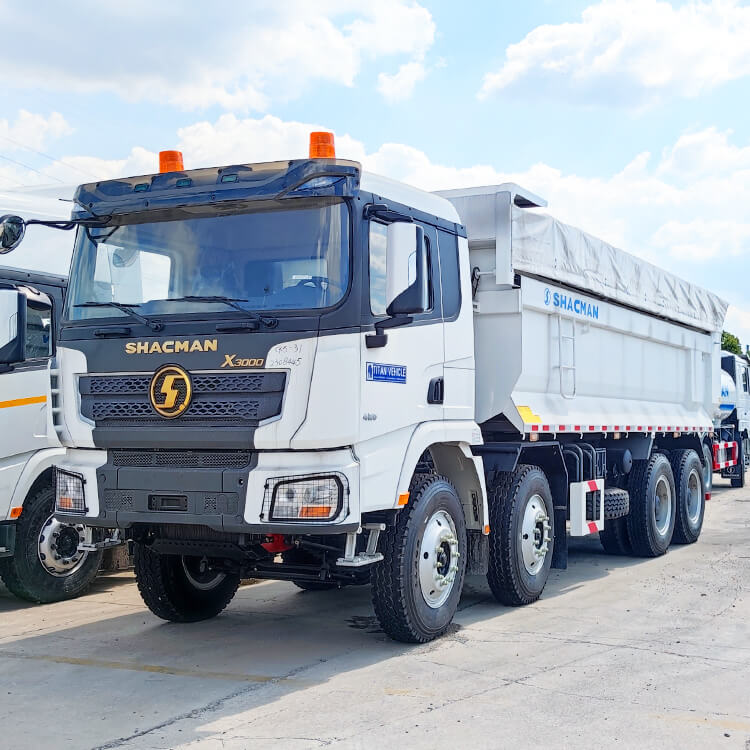

This shacman x3000 dump truck, shacman 8x4 dump truck for sale in Mali has a strong carrying capacity and can easily cope with various heavy-duty transportation tasks. Whether it is construction materials or mineral resources, it can be transported efficiently to ensure the progress of the project.
The core structural advantage of this shacman 8x4 dump truck for sale in Mali lies in its four-axle layout. The dual-front-axle synchronized steering system utilizes a precision-tuned linkage mechanism to ensure perfect tracking coordination among the four front wheels during turns; this not only delivers precise and agile steering but also significantly reduces abnormal tire wear.
The 8x4 design of this shacman dump truck for sale in Mali evenly distributes the total weight of the vehicle across eight wheel sets, significantly reducing the ground load pressure on a single axle. This balanced load distribution structure enables the vehicle to have outstanding anti-sinking ability and passability when passing through muddy conditions, soft roads or temporary sidewalks, and its driving stability far exceeds that of conventional models.
The subframe and the main frame of this shacman 8x4 dump truck for sale in Mali adopt an extremely scientific through connection design, and multiple layers of overlapping reinforcement have been carried out in high-load-bearing areas such as the rear suspension, the middle axle and the rear. This structure not only has an extremely high flexural modulus, but also possesses strong elasticity to resist lateral twisting on extremely rough roads, making it suitable for high-intensity and high-load working environments.
This shacman dump truck for sale in Mali adopts Hande heavy-duty engineering drive axles. The bridge structure adopts a cast steel integral bridge shell, which has a larger wall thickness and has achieved a qualitative leap in its resistance to disconnection and bending. When the vehicle enters a deep pit, a slippery mud field or when one side of the wheels slips, the mechanical locking structure can instantly distribute the power evenly to all the drive wheels, releasing a powerful hard-link grip.
This shacman 8x4 dump truck for sale in Mali suspension system adopts a thickened multi-leaf leaf spring structure. The front suspension adopts multiple high-rigidity leaf springs in combination with bidirectional kinetic hydraulic shock absorbers, which not only ensure the accuracy of guidance but also effectively absorb road impact. When the truck is performing high-level hydraulic lifting and unloading or making sharp turns on uneven ground, it can provide strong lateral anti-roll stiffness, firmly locking the truck's center of gravity and ensuring smooth driving of the truck.

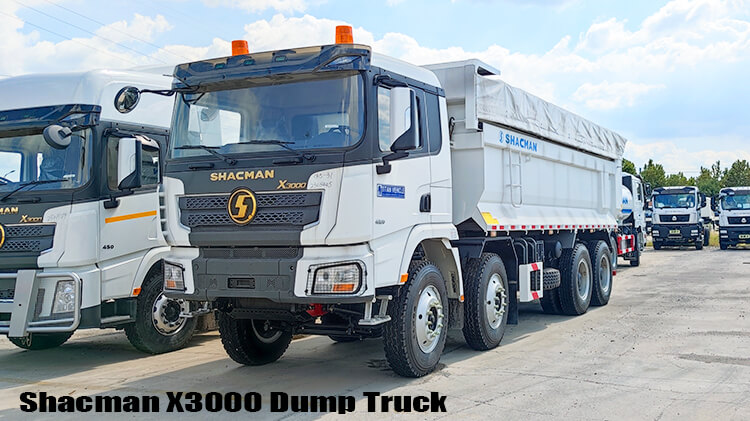

Model: shacman x3000 dump truck
Traction type: 8X4
Driving type: LHD
Clutch: EATON 430mm
Transmission: FAST 12JSD160TA (12 speeds)

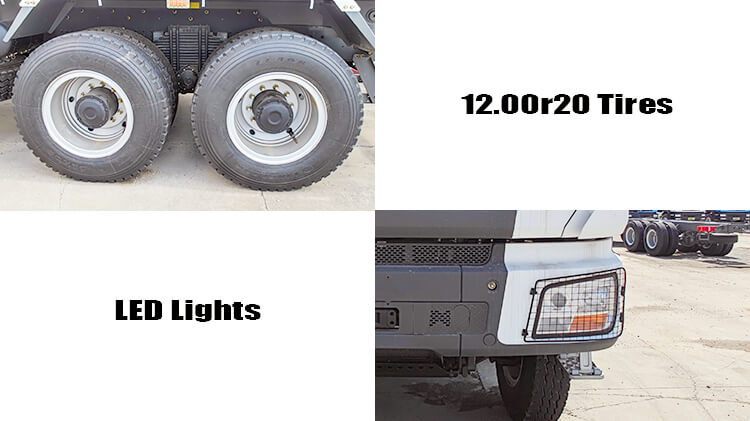

Tyre: 12.00R20
Fuel tank: 300L Aluminium
Electrics: 24V
Maximum driving speed: 110km/h
Engine: WEICHAI
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling
Horsepower: 420hp
Rated speed: 2200rpm
Wheel base(mm): 3175+1400mm
Overall size(mm): 7000x2550x3700mm
